BATTERY TESTING MADE EASY

STRONGER  •  FASTER  •  SAFER  •  LONGER LASTING

New additions to the ATP family allow you to maximize the number of batteries you test in two new formats. A new high-current configuration has the ability to charge and discharge up to 100 amps*. Additionally, a pack format has a universal adaptor to connect to your proprietary battery pack. Innovation continues at AES, bring your challenges and let’s work to deliver a solution together.



HIGH-CURRENT CAPABILITY

High-Curent-Zoom-1

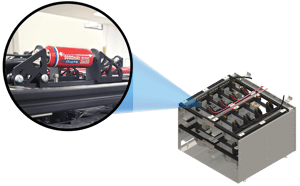

You can now test up to 100 amps* with an adjustable, spring-loaded configuration allowing you to connect any size cylindrical battery.

Adjustable Size  Each battery cell is suspended in the workspace creating clearance for a variety of cylindrical battery sizes. The battery terminals are mounted to 80/20 aluminum extrusion that can be repositioned with the twist of a screw, allowing for the precise tension you need.


Download Data Sheet

PACK CAPABILITY


Pack-zoom-battery-testing-1

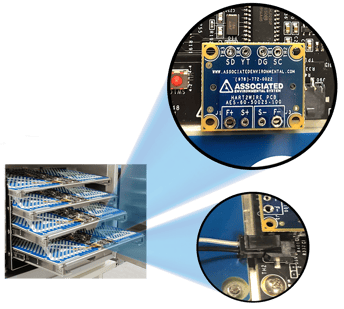

Testing new design and production battery packs is easy by connecting your proprietary battery pack to a universal adaptor. The adaptor attaches to the Battery Interface Board using a 32-pin connector. Through-holes allow you to wire directly to your pack: SD (Serial Data, aka SDA) YT (Power) DG (Digital Ground) SC (Serial Clock, aka SCL) Force (F+ & F-) and Sense (S+ & S-)

Integrated Data Collection  The Battery Interface Board includes Maccor proprietary RS-422 circuit technology converts data to these common communication methods: System Management Bus (SMB) Inter-Integrated Circuit (I2C) High-Speed Data Queue (HDQ)






APPLICATION HIGH CURRENT   PACK CYLINDRICAL   PRISMATIC / POUCH COIN
CELL HOLDER 18650, 21700, AAA, AA, A, C, D 32 Pin to Pack 18650, 21700, AAA, AA, A, C, D Spring-Loaded Clips Adjustable
CONFIGURATION

2x4 Holders
8 Per Shelf
16 Total

2x6 Holders
12 Per Shelf
48 Total
2x6 Holders
12 Per Shelf
48 Total
2x6 or 8 Holders
12 or 16 Per Shelf
48  or 64 Total
2x6 Holders
12 Per Shelf
48 Total
TEMPERATURE RANGE -20°C to +80°C -20°C to +80°C -20°C to +80°C

-20°C to +80°C

Ext -40°C to +150°C

-20°C to +80°C
TEST SURFACE DIMENSIONS Adjustable Free Standing  8.75 x 19 in
(22.23 x 48.26cm)
8.75 x 19 in
(22.23 x 48.26cm)
8.75 x 19 in
(22.23 x 48.26cm)
8.75 x 19 in
(22.23 x 48.26cm)
MAXIMUM CURRENT Up to 100 amps* 20 amps 20 amps 20 amps 20 amps
CABLE MANAGEMENT  Through IGUS Track Through IGUS Track Through IGUS Track Through IGUS Track Through IGUS Track

Additional Monitoring

An integrated auxiliary sense circuit for each channel is included. Adding a connector to the universal 2-pin molex allows you to enable secondary voltage reading that is customizable to control power exchanges and a variety of other signals.

NOTE: AES Pack Battery Interface Board integrates only with Maccor’s RS-422 circuit technology.




High density battery testing patent pending



Associated Environmental Systems continues to bring innovation to environmental test chambers, making battery testing easier. Reach out to learn about how AES can help solve your battery testing needs.
