Cylindrical Cell - 48 Channel - 20 Amp

Overview

Patented battery testing

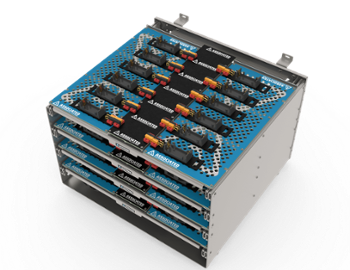

AES' patented ATPPRIME is a battery test fixture designed to hold up to 48 channels over four full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. IGUS track ensures wiring stays in place when shelves are moved, and batteries are switched out.

Cylindrical cell holders attach via universal power pole connectors. Gold contacts at connection points ensure you get each cell's best charge and discharge and Kelvin sensing to offer accurate readings for each channel. A two-foot patch cord connects to your battery cyclers interconnect cables for an easy connection.

    Cylindrical holders: 18650, 21,700, 26,650, AAA, AA, C, D, and more
        Temperature Range: -20°C to 80°C (-4°F to +176°F)
            Standard Maximum Current: up to 20 amps, continuous at ambient. Please inquire for higher ampere applications.
              <*Cell holders sold separately>

Specifications

Configuration: 12 Channels per shelf - 1-4 Shelves
Channels: 12-48 Channels
Connection Type: Power Pole
Application: Cylindrical Cell
Max Current: 20 Amps
Cable Management: IGUS Track
Temperature Range: -20 °C to 80 °C (-4 °F to 176 °F)
Extended Performance: Inquire for extended performance
