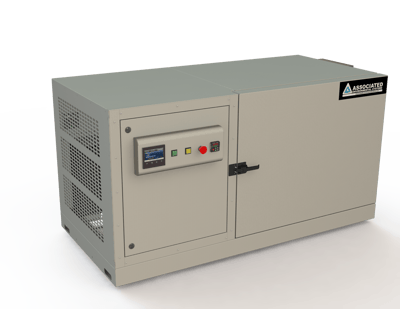

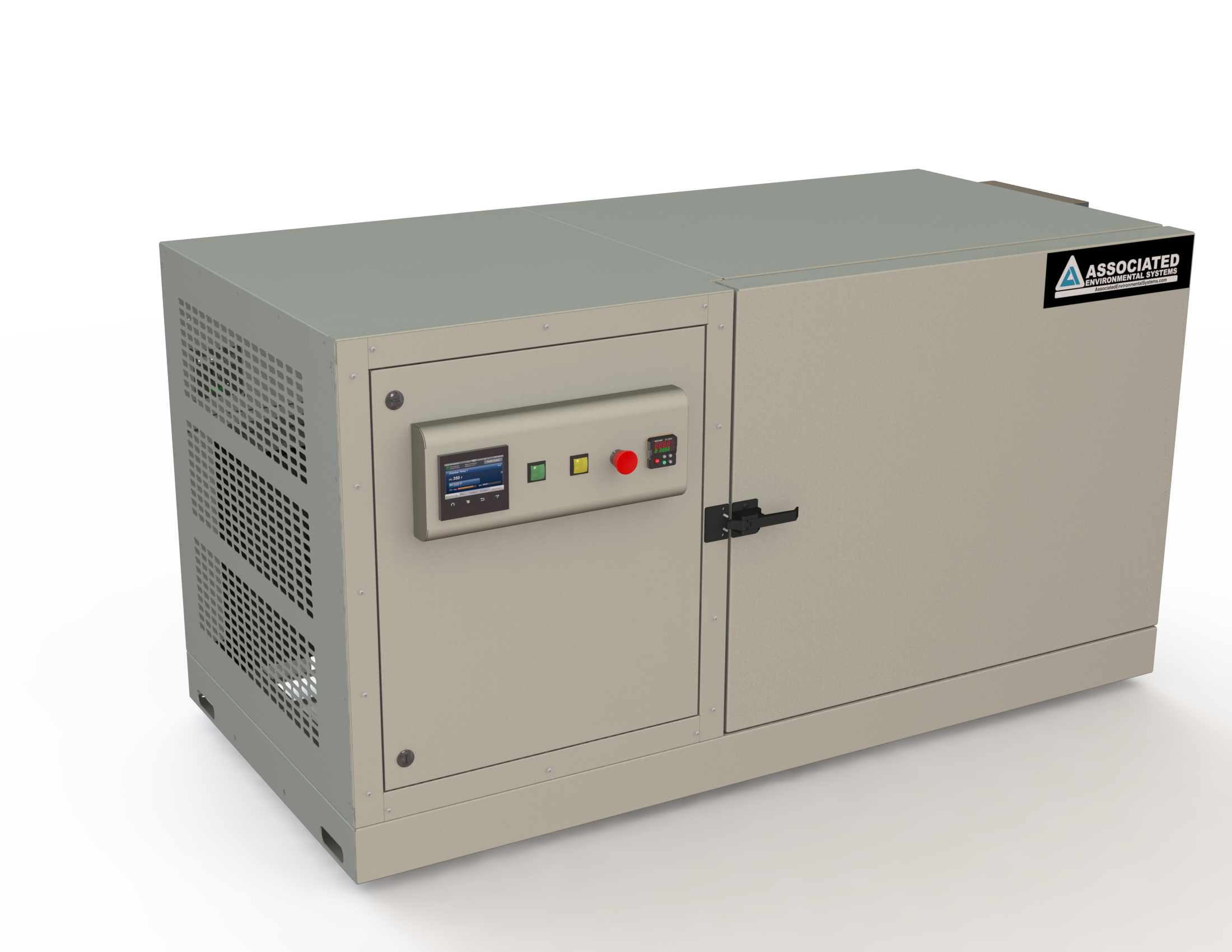

SC-508 Environmental Testing Chamber
Illustration of man next to SC-508 for scale
Illustration of man next to SC-508 for scale
Environmental Test Chamber
SC-508 Environmental Testing Chamber
Illustration of man next to SC-508 for scale
Illustration of man next to SC-508 for scale
Environmental Test Chamber

SC-508

BenchtopRack and Stack

Benchtop Stackable icon High Performance icon

The SC-508, also known as the Super 508, is the most powerful temperature-only benchtop test chamber in the world. Designed and engineered to work seamlessly with ATPHEAVY, a battery fixture that can test 8 batteries up to 1000 amps per channel, the Super 508 can outperform any standard benchtop-style test chamber while still allowing safe and easy access into your workspace. The SC series comes in three models, SC-508, SC-508-ATP optimized for battery testing, and SC-508-SAFE optimized to AES SAFE battery testing safety standards.

If you are concerned about losing your lab counter space, this test chamber has an optional floor stand for one chamber, or get double the test workspace when you stack two SC test chambers in the same footprint.

STRUCTURE.  The internal workspace is lined with type 304 stainless steel for a vapor-tight internal construction. Two specialized ports allow for cable patches to feed through the back of the test chamber workspace and easily connect to your battery cycler test equipment.

The exterior has a durable powder-coat finish over heavy-gauge steel for a long-lasting clean look. Between the two layers is highly efficient, low k-factor, thermal insulation. This chamber is built to last for many years.

CIRCULATION SYSTEM.  Air circulation is crucial for environmental testing. The SC and SCH series has an increased air flow with two 1/3 horsepower motors and blower wheels with adjustable speed. This optimizes temperature conditions within the workspace for the ATPHEAVY battery fixture.

HEATING SYSTEM.  SC test chambers feature heating systems equipped with temperature limited sheath heaters to maximize safety and performance for reliable and accurate temperature control within ±0.5°C.

COOLING SYSTEM.  The cooling system in the SC and SCH series consists of a self-contained mechanical refrigeration system with a single stage configuration, and a 3.5 HP scroll compressor. An optional water-cooled condenser is available.

Add boost cooling with liquid LN2 or CO2 for even faster pull-down rates. It's a great option for stress tests that require rapid cooling.

Even without boost cooling, AES’ standard refrigeration systems have the fastest standard change rates of any environmental test chamber manufacturer. See Basic Specifications tab below.

INSTRUMENTATION. SC-508 Test Chamber incorporates AESONE CONNECT  creating a robust connected device giving you a standard and uniform interface that makes operation easier. Learn more in the Instrumentation Tab below.

Buy $39,160 (base price)
Show More...
SC-508

SC-508

Right wall port configuration

SC-508-ATP

SC-508-ATP

Battery testing optimized: Rear wall port configuration

SC-508-SAFE

SC-508-SAFE

Battery testing optimized: Rear wall port configuration, AES SAFE battery testing safety features. *See Safety Features below for more details

  • Specifications
  • Standard Features
  • Instrumentation
  • Safety Features
  • Optional Features
  • Downloads

Specifications

Interior: 24W x 24.1D x 25.8H (in)
  609.5W x 612.1D x 655.3H (mm)
Exterior: 70W x 38D x 36H (in)
  1778W x 965.2D x 914.4H (mm)
Volume: 8.64 cubic ft
  244.65 liters
Temperature: -37°C to 180°C (-34.6°F to 356°F)
Rise Rate*:

↑  5°C/min - Impulse
↑  5°C/min - Impulse
↑  5°C/min - Impulse

Pull Down Rate*:

↓  5°C/min - Impulse
↓  5°C/min - Impulse
↓  5°C/min - Impulse

Electrical Supply:  208 VAC, 1 PH, 60 HZ
Full Load Amps: 40 A
Power Requirement: Non-NEMA L6-50 Plug
Refrigeration System:  Single stage
Mobility: Will fit through 48 in doorway

*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.

Specifications

SC-508

  • Temperature range: -37°C to 180°C (-34.6°F to +356°F)
  • External cabinet construction consists of heavy-gauge, cold-rolled steel with powder coat, bone color, and textured matte finish
  • External light with exterior switch on cabinet face and operable on AESONE CONNECT
  • Port configuration: right wall access port and plug with 3in (76.2mm) diameter
  • Fully opening door with manual latch
  • 20" X 20" Heated multi-pane viewing mirror
  • Fully adjustable shelf, 1 wire-grid shelf, stainless steel
  • SC-508-ATP

  • Temperature range: -37°C to 180°C (-34.6°F to +356°F)
  • External cabinet construction consists of heavy-gauge, cold-rolled steel with powder coat, bone color, and textured matte finish
  • Exterior light with exterior switch on cabinet face and operable on AESONE CONNECT
  • Port configuration: Two rear wall access port and plug with 4in (76.2mm) diameter for ATP fixture and four 2in (50.8mm) diameter rear wall ports for additional sensors
  • 20” x 20” Heated Multi Pane Viewing Window
  • SC-508-SAFE

  • Temperature range: -37°C to 180°C (-34.6°F to +356°F)
  • External cabinet construction consists of heavy-gauge, cold-rolled steel with powder coat, bone color, and textured matte finish
  • Exterior light with exterior switch on cabinet face and operable on AESONE CONNECT
  • Port configuration: Two rear wall access port and plug with 4in (76.2mm) diameter for ATP fixture and four 2in (50.8mm) diameter rear wall ports for additional sensors
  • Instrumentation

    STANDARD INSTRUMENTATION

    CONTROLLER   AESONE CONNECT allows for secure remote access to your test chamber and gives easy profile creation, operational control, and data management.

    SC Series Test Chambers have incorporated AESONE CONNECT creating a robust connected device for a standard and uniform interface making test chamber operation easier.

    AESONE XCHANGE is hardware internal to the chamber that increases your functionality

    • Connects the test chamber controller to your network for increased accessibility
    • On-board multi-year data logging

    AESONE SOFTWARE gives you the power to

    • Remote chamber operation and monitoring,
    • Web-based test profile creation,
    • Viewing current data and historical data visually
    • Secure multi-level user access

    ADDITIONAL ONBOARD INSTRUMENTATION

    WATLOW F4T PROGRAMMABLE CONTROLLER. Features a 4.3” capacitive touchscreen minimizing the chance for error. Ethernet communication supported by AESONE HARDWARE. View more controller options

    SENSORS.

    • TEMPERATURE SENSOR. Measured at the point of airflow entering the workspace. Class A, 3-wire, 100 Ohm Platinum RTD sensor

    OPTIONAL DATA LOGGERS. View additional data loggers

    Safety Features

    SC-508

  • High/Low Temperature Control
  • Set Point Temperature Limit
  • Chamber Alarm Input
  • Chamber Alarm Output
  • Refrigeration System Over-pressure Safety Circuit
  • Audible and Visual Alarm
  • Emergency Stop Button
  • Temperature Limited Sheath Heaters
  • TUV Rheinland certified meeting UL-508A
  • SC-508-ATP

  • High/Low Temperature Control
  • Set Point Temperature Limit
  • Chamber Alarm Input
  • Chamber Alarm Output
  • Refrigeration System Over-pressure Safety Circuit
  • Audible and Visual Alarm
  • Emergency Stop Button
  • Temperature Limited Sheath Heaters
  • TUV Rheinland certified meeting UL-508A
  • SC-508-SAFE

  • High/Low Temperature Control
  • Set Point Temperature Limit
  • Chamber Alarm Input
  • Chamber Alarm Output
  • Rapid Temperature Change
  • Refrigeration System Over-pressure Safety Circuit
  • Audible and Visual Alarm
  • Emergency Stop Button
  • Temperature Limited Sheath Heaters
  • TUV Rheinland certified meeting UL-508A
  • Door Lock
  • Burst Disk/Low Flow Vent
  • Safety Purge
  • Reinforcement
  • 8 Product Thermocouples
  • Optional Safety Features

  • Single Gas Sensor
  • Dual Gas Sensor
  • Triple Gas Sensor
  • Large Burst Disk Upgrade
  • Additional Thermocouples
  • Optional Features

    • Shelf Modification
    • Custom Porting Sizes
    • Custom Window Size
    • Heater for Window
    • LN2 Boost Cool
    • CO2 Boost Cool
    • Desiccant Air Dryer to reach conditions as low as 5% RH
    • Dry Nitrogen Purge to keep condensation and frost from accumulating on DUT surfaces at cold temperatures and to prevent oxidation of metals surfaces at high temperatures
    • Floor Stand with Casters
