BD Series -

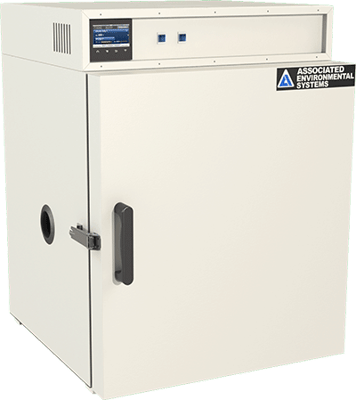

BD-908 - Laboratory Ovens

The BD-908 Model is a laboratory oven capable of providing highly-stable, controlled, forced hot air circulation. BD-908 Laboratory Ovens are standard laboratory ovens that provide dry, air-circulated heat as an environmental testing condition. The heating system

CONSTRUCTION.  These laboratory ovens feature a durable powder-coat finish over heavy-gauge steel, with stainless steel internal construction, and highly-efficient, low K factor, thermal insulation, this is built to last for many years.

CIRCULATION SYSTEM.  The ability to maintain precise temperatures occur with help from direct, drive-powered fans. The performance level operates the internal workspace temperature from +38°C* to +220°C (100.4°F to +428°F).

HEATING SYSTEM.  The oven features an industry-leading heating system equipped with low-watt density, ceramic core, nichrome heaters for accurate temperatures within ±0.5°C, as measured at the sensor.

BD Series Laboratory Ovens are ideal for:

  • aging
  • baking
  • curing
  • drying
  • sterilizing
  • and more.

INSTRUMENTATION. The standard BD Models have a manual-set digital controller. For more sophisticated test profiles, upgrade incorporates AESONE CONNECT creating a robust connected device giving you a standard and uniform interface that makes operation easier. Learn more in the Instrumentation Tab below.

With the popularity of rapid cooling, BD-908 Models have spawned a standard liquid-cooled model. Take a look at BD-100 Model Laboratory Ovens to incorporate liquid LN2 or CO2 cooling or cryogenic cooling into your laboratory oven.

Contact us for quote
Show More...
  • Specifications
  • Standard Features
  • Instrumentation
  • Safety Features
  • Optional Features
  • Downloads

Specifications

Interior: 24W x 24D x 24H (in)
  61W x 61D x 61H (mm)
Exterior: 30.5"W x 32.5"D x 40"H (in)
  774.7W x 825.5D x 1016H (cm)
Volume: 8 cubic ft
  226.54 liters
Temperature: 38°C to 220°C (100.4°F to 428°F)
Rise Rate*: 4.88
Electrical Supply:  120VAC, 1PH, 60HZ,
Full Load Amps: 22
Power Requirement: NEMA L5-30
Mobility: Will fit through 32" door

*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.

Specifications

  • Interior Cabinet: Stainless Steel, Type 304
  • Exterior Cabinet: Cold Rolled Steel, Heavy-Gauge, Powder Coat finish, Color: Bone
  • Forced Air Circulation
  • Port Configuration, 1 Left Side Port, with 3in (76.2mm) Diameter

Instrumentation

STANDARD INSTRUMENTATION

CONTROLLER

Temperature is manually-set with one Watlow EZ-ZONE PM controller (non-programmable)


UPGRADE WITH

BD Series Test Chambers can incorporate AESONE SOLUTIONS creating a robust connected device for a standard and uniform interface making test chamber operation easier.

AESONE XCHANGE increases your functionalityaesone-connect-1

  • connects the test chamber controller to your network for increased accessibility
  • on-board multi-year data logging

AESONE SOFTWARE gives you the power to

  • remote chamber operation and monitoring,
  • web-based test profile creation,
  • viewing current data and historical data visually
  • secure multi-level user access

WATLOW F4T PROGRAMMABLE CONTROLLER. Features a 4.3” capacitive touchscreen minimizing the chance for error. Ethernet communication supported by AESONE HARDWARE. View more controller options

ADDITIONAL ONBOARD INSTRUMENTATION

SENSORS. 100 OHM Platinum RTD  is a highly-accurate sensor made from platinum components for increased sensitivity View sensor options

Safety Features

Adjustable Digital Set Limit Controller- Indicating High-Temperature Safety

Optional Features

  • Shelf Modification (placement, size, number)
  • Custom Porting Sizes
  • Additional Blank Door
  • Add Window Optional Sizes
  • LN2 Cooling (standard in BD-100)
  • CO2 Cooling  (standard in  BD-100)
  • Desiccant Air Dryer to ensure conditions as low as 5% RH
  • Dry Nitrogen Purge to keep condensation and frost from accumulating on DUT surfaces at cold temperatures and to prevent oxidation of metals surfaces at high temperatures
  • Floor Stand w/ Casters
