Cell Clip 6x6 Battery Testing

Cell Clip - 6x6

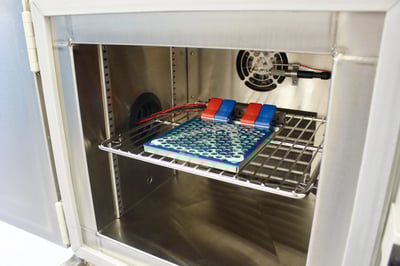

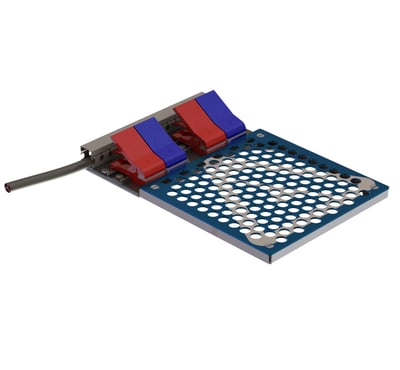

AES' ATPFLEX battery test fixture designed for portability and integration into any environmental test chamber. For battery testing pouch or prismatic cells, ATPFLEX cell boards have a two-channel configuration. Connection points are secure from the test surface to the cell holder and connectors through fixed wiring to your battery cycler. Test surfaces mounted to the channels and give you a secure, flat, non-conductive test surface. Multiple test surfaces are available to fit your battery cell shape. The perforated surface enables airflow for optimal air circulation and thermal uniformity.

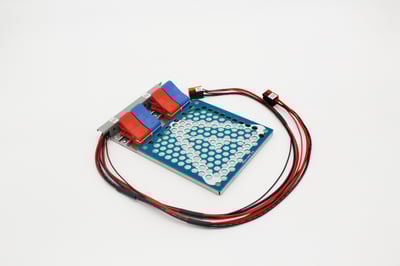

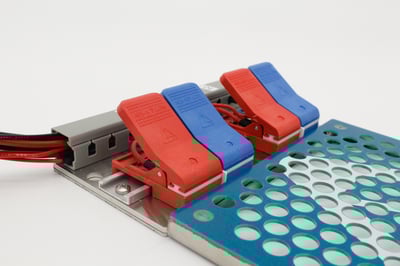

Pouch or prismatic cells connect via two separate spring-loaded clips. Gold contacts at connection points ensure you get the best charge and discharge of each cell and Kelvin sensing, or four-terminal wire sensing, offer accurate readings for each channel. An approximately two-foot pigtail connects the channels to your battery cycler interconnect cables which plug into your battery cycler.

Temperature Range: -20°C to 80°C (-4°F to +176°F)

Product Overall Dimensions: 6.0W X 9.0D X 1.5H in (152.4W X 228.6.0D X 38.1H mm)

Test Surface Dimensions: 6.0W X 6.0D in (152.4W X 152.4D mm)

Standard Maximum Current: up to 20 amps, continuous at ambient. Please inquire for higher amperage applications.

Buy $500 (base price)
