What Is a Battery Test Chamber?

Battery test chambers simulate the most intense real-world conditions your cells are likely to encounter, including extreme temperatures and humidity. You can assess their effectiveness and reliability by charging and discharging them in a controlled workspace.

We're adaptable.

AES’s Battery Test Chambers are expertly engineered to accommodate a wide range of battery testing standards across diverse industries. Our cutting-edge test chambers equipped with battery safety testing features set a new benchmark for flexibility and innovation, ensuring reliable and precise testing.

WE’RE LEAN.

AES SAFE battery test chambers, designed with lab efficiency in mind, employ double-stacking for maximum footprint utilization. Our lean manufacturing and 6S methodology ensure safe and effective battery testing in a well-managed space.

WE'RE INTEGRATORS.

Our commitment to excellence extends to collaborating with all leading cycler manufacturers, guaranteeing that your battery testing solution is perfectly tailored to your specific needs. With AES, you can trust that your battery testing needs are in the hands of experts who prioritize innovation, quality, and seamless integration.

AES_MegaMenu_Icons24

5000+

Active Battery Test Chambers

AES_MegaMenu_Icons2

200,000+

Active channels deployed in our ATP® systems

AES_MegaMenu_Icons21

up to 1200 Amps

Our ATP®solutions can accommodate less than 1 amp up to 1200 amps continuous or pulse


Find the Battery Chamber That’s Right for You

AES fills a significant industry gap by providing patented integration of chambers and battery testing equipment, offering a single-source solution. This streamlines operations, saving time and money for customers. With extensive experience and expertise, AES ensures efficient installation processes, minimizing costly delays and mistakes. With hundreds of thousands of active battery test channels to date, AES has established a proven track record in the field. Choose AES for your chamber and fixture needs, experiencing convenience, reliability, and optimized productivity.



Seamless connection to your cycler

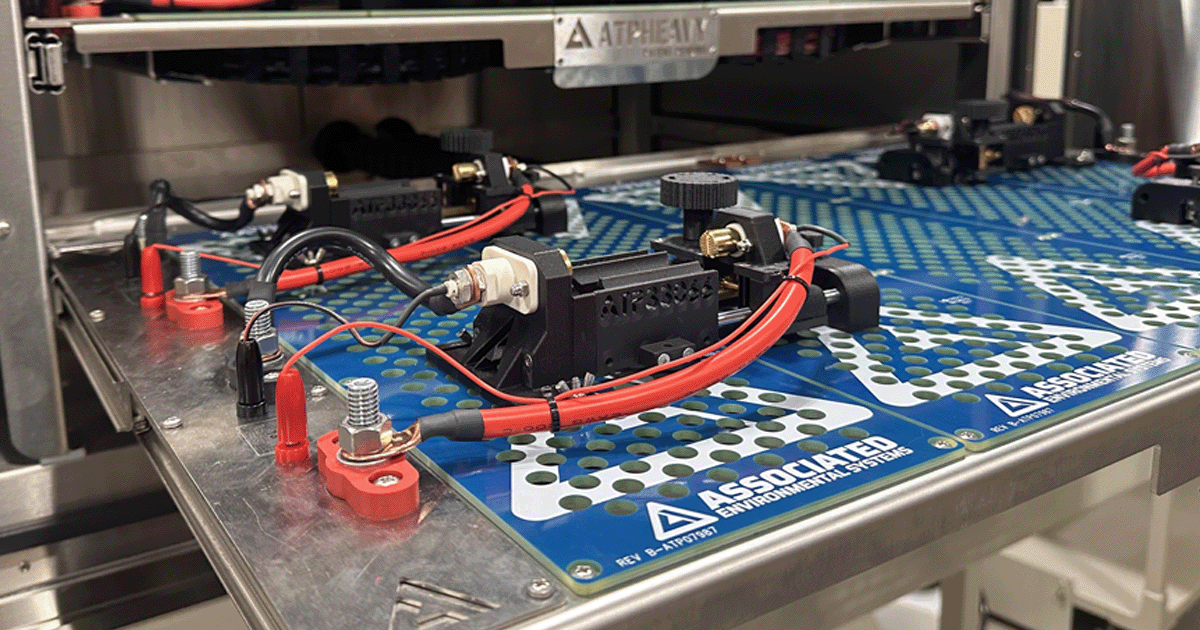

ATP/Cycler Interface Panel

Our cycler interface panel, situated at the rear of the chamber, features isolated terminal posts for connecting current-carrying wires from the cycler and isolated turret-style connectors that facilitate easy interfacing with cycler sense wires. This offers a secure location for connections and ensures safety and functionality for direct communication about the health of your cell.

BENCHTOP BATTERY TEST CHAMBERS

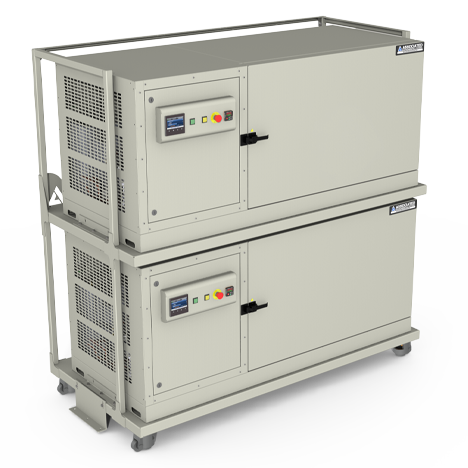

SC/SCH SAFE SERIES

The SC (temperature-only) and SCH (temperature and humidity) Series feature the most powerful benchtop chambers in the world. These chambers enable you to precisely control the environmental conditions within the chamber’s workspace. These chambers are stackable and engineered to work seamlessly with battery testing fixtures.

Specs at a Glance

  • Temp Range: -37°C - 180°C
  • Humidity Range: 10%-95% RH(SCH only)
  • Pulldown Rate: 5°C/min.
  • Working Volume: 8.64 cubic feet(SC/SCH-508), 12.94 cubic feet(SC/SCH-512)
  • Available Models: SC-508-SAFE, SCH-508-SAFE, SC-512-SAFE, SCH-512-SAFE

AESONE CONNECT®

SC and SCH Series chambers come standard with AESONE CONNECT®, enabling you to remotely monitor your chamber from a desktop, laptop, or tablet from any location.

AES SAFE

Battery Test Chambers included with battery safety testing features equipped to handle up to hazard level 7:

  • Emergency Stop Button
  • High/Low Temperature Limit
  • Rapid Temperature Change
  • Audible and Visual Alarm
  • Temperature Limited Sheath Heaters
  • Enhanced Remote Door Lock
  • Burst Disk/Low Flow Vent
  • Safety Purge
  • Product Sensors
  • Reinforced Inner Wrap
  • Chamber Alarm Input
  • Chamber Alarm Output

BENCHTOP BATTERY TEST CHAMBERS

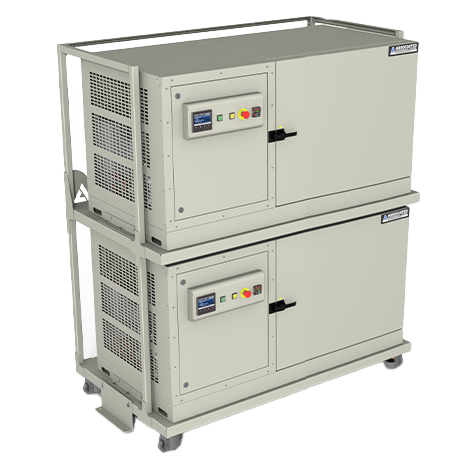

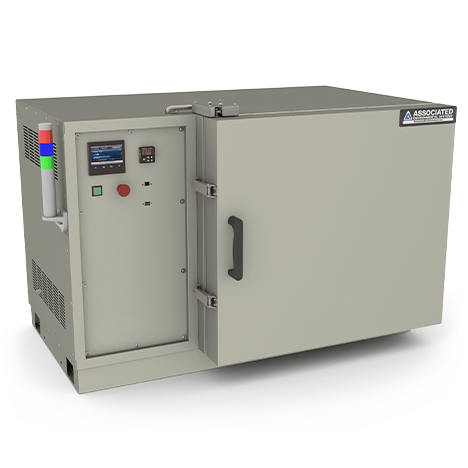

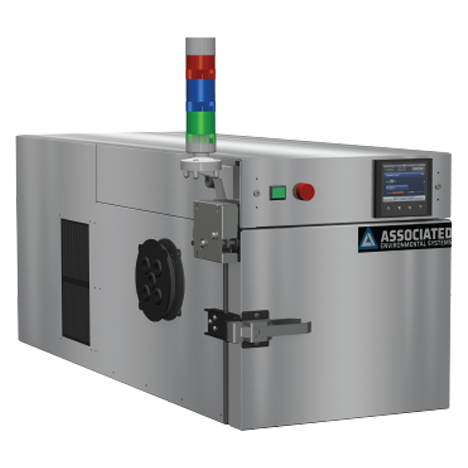

SD/BHD SAFE Series

The SD (temperature-only) and BHD (temperature and humidity) Series give you precise control over conditions in your chamber’s workspace to enable effective battery testing. They are stackable, optimizing your footprint.

Specs at a Glance

  • Temp Range: -37°C - 180°C
  • Humidity Range: 10%-95% RH(BHD only)
  • Pulldown Rates:
    3°C/min.(SD-501)
    4°C/min.(SD-508)
    4°C/min.(BHD-508)
  • Working Volume: 8.00 cubic feet (SD/BHD 508), 1.00 cubic feet (SD-501)
  • Available Models: SD-501-SAFE, SD-508-SAFE, BHD-508-SAFE

AESONE CONNECT®

SD and BHD Series chambers come standard with AESONE CONNECT®, enabling you to remotely monitor your chamber from a desktop, laptop, or tablet from any location.

AES SAFE

Battery Test Chambers included with battery safety features equipped to handle up to hazard level 7:

  • Emergency Stop Button
  • High/Low Temperature Limit
  • Rapid Temperature Change
  • Audible and Visual Alarm
  • Temperature Limited Sheath Heaters
  • Enhanced Remote Door Lock
  • Burst Disk/Low Flow Vent
  • Safety Purge
  • Product Sensors
  • Reinforced Inner Wrap
  • Chamber Alarm Input
  • Chamber Alarm Output

FlOOR BATTERY TEST CHAMBERS

FD SAFE Series

The FD Series gives you precise control over conditions in your chamber’s workspace to enable effective battery testing. These chambers are large in volume and are floor model test chambers able to test larger, higher-capacity cells safely.

Specs at a Glance

  • Temp Range: -40°C - 180°C
  • Pulldown Rates:
    5.5°C/min (FD-527-7.5-SAFE)
    4.5°C/min (FD-548-7.5-SAFE)
  • Working Volume: 27 cu ft and 48 cu ft
  • Available Models: FD-527-7.5-SAFE
    FD-548-7.5-SAFE

AESONE CONNECT®

FD Series chambers come standard with AESONE CONNECT®, enabling you to remotely monitor your chamber from a desktop, laptop, or tablet from any location.

AES SAFE

Battery Test Chambers included with battery safety features equipped to handle up to hazard level 7:

  • Emergency Stop Button
  • High/Low Temperature Limit
  • Rapid Temperature Change
  • Audible and Visual Alarm
  • Temperature Limited Sheath Heaters
  • Enhanced Remote Door Lock
  • Burst Disk/Low Flow Vent
  • Safety Purge
  • Product Sensors
  • Reinforced Inner Wrap
  • Chamber Alarm Input
  • Chamber Alarm Output

Building a Battery Testing Lab or Planning an Expansion?

AES has years of experience working with companies across industries, designing high-powered battery labs. We provide installation and guidance on power requirements, necessary spacing between chambers to account for performance and employee movement, HVAC systems, safety measures, and education on proper use. We work with your chosen testing chamber manufacturer to provide the best test solution for the optimal test setup. We can help you plan for now and the future.

TALK TO A BATTERY TESTING SPECIALIST

Battery Safety Testing Features

BATTERY SAFETY MATTERS: WHAT SAFETY FEATURES TO CONSIDER WHEN BATTERY TESTING



Standard AES Chambers
AES SAFE Required
Severity Level Description Severity Classification & Effects Criteria
0 No Effect No effect. No loss of functionality.
1 Reversible Loss of Function No defect; no leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell reversibly damaged. Repair of protection device needed.
2 Irreversible Defect/Damage No leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell irreversibly damaged. Repair needed.
3 Leakage
Δ mass <50%
No venting, fire, or flame; no rupture; no explosion. Weight loss <50% of electrolyte weight (electrolyte = solvent + salt).
4 Venting
Δ mass >=50%
No fire or flame; no rupture; no explosion. Weight loss ≥50% of electrolyte weight (electrolyte = solvent + salt).
5 Fire or Flame No rupture; no explosion (i.e., no flying parts).
6 Rupture No explosion, but flying parts of the active mass.
7 Explosion Explosion (i.e., disintegration of the cell)

*Gas Sensors and Additional Safety Features Available
