Floor Stand Options

The LH-1.5 can be purchased with a single floor stand or upgraded to a double-stack configuration. By stacking two LH-1.5 chambers in the same footprint, you maximize your available lab space and expand your testing capacity without expanding your floorspace.

LH-1.5 single and double stack floor stand come standard with floor mounts and swivel brake casters.

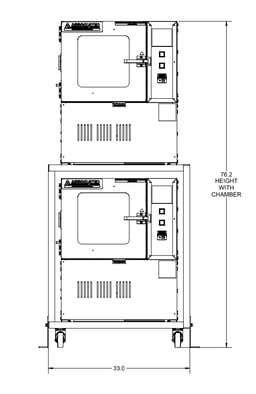

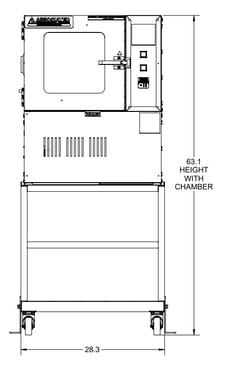

Single Floor Stand	Double Stack Floor Stand
Specs Inches Stand Width 28.3 Stand Depth 30.2 Stand Height 30.2 Overall Height w/ Chamber 63.1 Overall Length w/ Chamber 33.8	Specs Inches Stand Width 33 Stand Depth 30 Stand Height  42.7 Overall Height w/ Chamber  76.2 Overall Length w/ Chamber  31.5

The SD and BHD Series offers flexible floor stand configurations to fit your lab space.

• 2 cu. ft. model: Available with a single or double-stack floor stand.

• 8 cu. ft. model: Choose between a single, double, or even a triple-stack floor stand to maximize your testing capacity within the same footprint. Inquire about our triple stack configuration with your sales engineer.

BHD and SD single and double stack floor stand come standard with floor mounts and swivel brake casters.

2 Cu ft Single Floor Stand	2 Cu Ft. Double Stack Floor Stand
Specs Inches Stand Width 54.80 Stand Depth 27.54 Stand Height 30.0 Overall Depth w/Chamber 33.31 Overall Heigh w/ Chamber 55.00	Specs Inches Stand Width 54.80 Stand Depth 27.54 Stand Height 41.59 Overall Depth w/ Chamber 35.31 Overall Height w/ Chamber 67.59

Our SD-501 has the ability to rack and stack 3 high.

SD-501-3RS -TRIPLE STACK
Specs Inches Stand Width 23.622 Stand Depth 42.97 Stand Height 78.1 Overall Depth w/ Chamber 46.7 Overall Height w/ Chamber 78.1

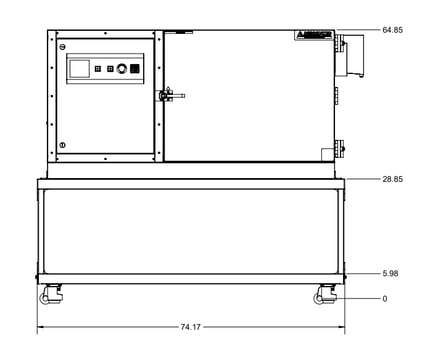

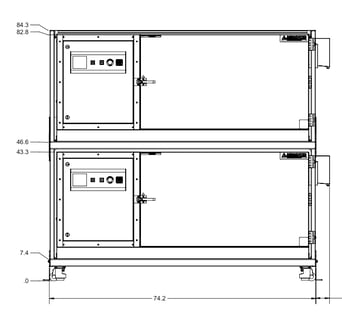

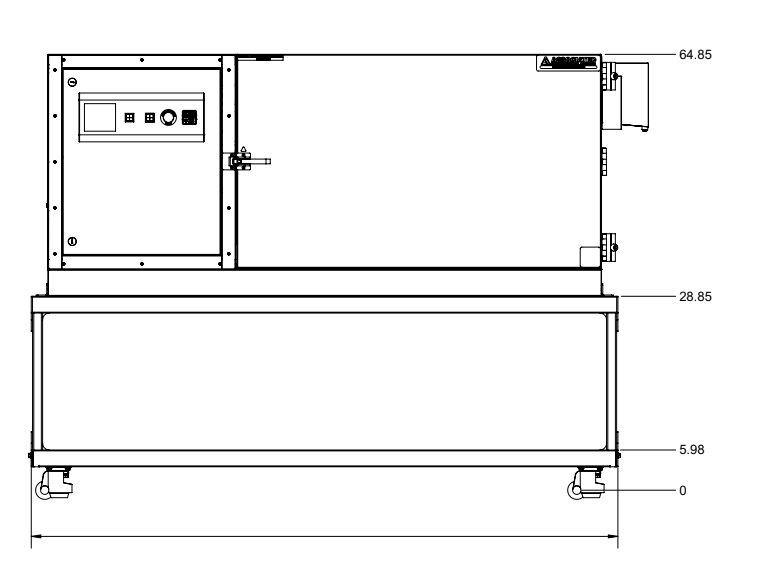

The SC and SCH Series offers flexible floor stand configurations to fit your lab space.

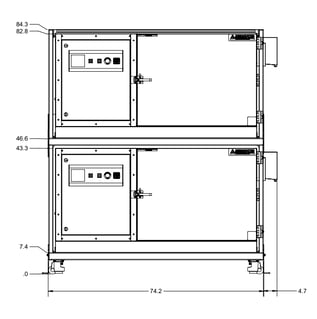

• 8 cu. ft. model: Choose between a single, double, or even a triple-stack floor stand to maximize your testing capacity within the same footprint. Inquire about our triple stack configuration with your sales engineer.

• 12 cu. ft. model: Choose between a single, double, or even a triple-stack floor stand to maximize your testing capacity within the same footprint. Iquire about our triple stack configuration with your sales engineer.


SC and SCH single and double stack floor stand come standard with floor mounts and swivel brake casters.

The MX Series is a compact, benchtop salt spray chamber. An optional stand is available for customers who prefer a floor-mounted configuration. The specs for each are as follows.

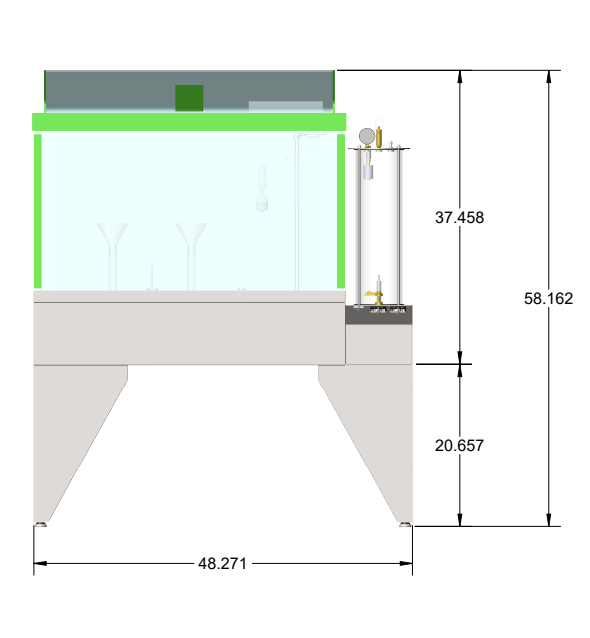

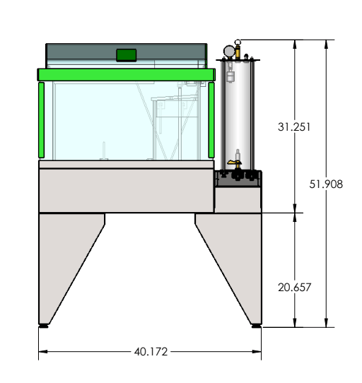

4 Cu Ft Stand	8 Cu ft Stand
Specs Inches Stand Width 40.172 Stand Depth 27.449 Stand Height 20.657 Overall Depth w/ Chamber 27.449 Overall Height w/ Chamber 51.908	Specs Inches Stand Width 48.271 Stand Depth 33.567 Stand Height 20.657 Overall Depth w/ Chamber 33.567 Overall Height w/ Chamber 58.162

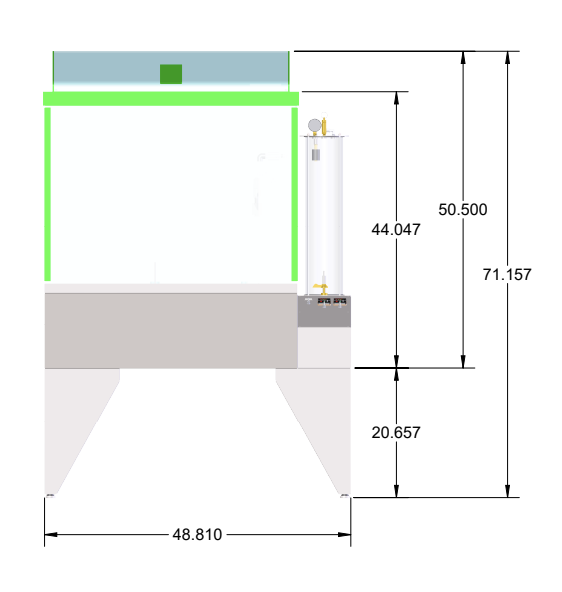

16 Cu ft Stand
Specs Inches Stand Width 48.810 Stand Depth 38.415 Stand Height 71.157 Overall Depth w/ Chamber 38.415 Overall Height w/ Chamber 71.157

BD Ovens offers floor stands for our 4 cu. ft., 8 cu. ft., 27 cu. ft., and 64 cu. ft. models.

• The 4 cu. ft. and 8 cu. ft. stands come equipped with swivel brake casters for easy mobility.

• The 27 cu. ft. and 64 cu. ft. stands come standard with casters, mounting bolts, and floor brackets.

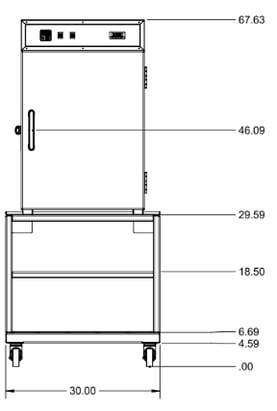

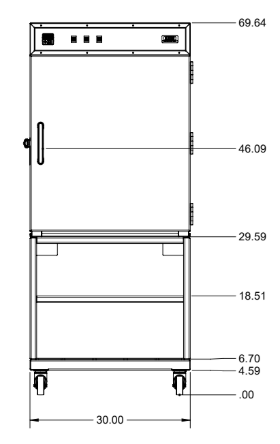

4 Cu Ft Stand	8 Cu ft Stand
Specs Inches Stand Width 30 Stand Depth 29.10 Stand Height 30.24 Overall Depth w/ Chamber 29.65 Overall Height w/ Chamber 67.63	Specs Inches Stand Width 30 Stand Depth 29.10 Stand Height 30.24 Overall Depth w/ Chamber 33.02 Overall Height w/ Chamber 69.64
27 Cu Ft Stand	64 Cu Ft Stand
Specs Inches Stand Width 48.500 Stand Depth 46.226 Stand Height 10.875 Overall Depth w/ Chamber 38.415 Overall Height w/ Chamber 71.157	Specs Inches Stand Width 56 Stand Depth 57 Stand Height 20 Overall Depth w/ Chamber 63.7 Overall Height w/ Chamber 96.2
