Prismatic - 8CH - 250 AMPS - Opposing Tabs
AES' patent-pending ATPHEAVY Prismatic is a battery test fixture designed to accommodate battery testing up to 250 amps. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. This ATPHEAVY Prismatic fixture comes standard with the ability to handle up to 8 high amperage batteries with opposing tabs for positive and negative connection.

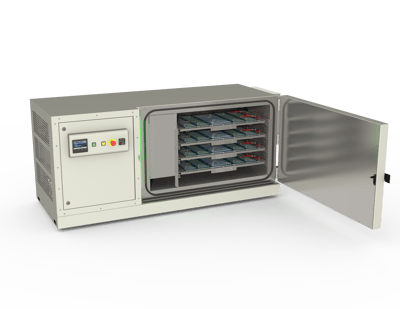

ATPHEAVY is configured to provide safe and easy placement of multiple, high amperage batteries into an environmental test chamber with four fully extending shelves. The ATPHEAVY Prismatic combines multiple components critical for battery testing into a scalable, safe, high-density battery testing platform.
Available with Vertical or Horizontal Clamps or Jumper Cables for universal application.
- Temperature Range: -20°C to 80°C (-4°F to +176°F)
Standard Maximum Current: up to 250 amps, continuous at ambient. Please inquire for higher amperage applications.
Specifications
| Configuration: | 2 Channels per shelf 1-4 Shelves |
| Channels: | 8-16 Channels |
| Connection Type: | Jumper Cables |
| Application: | Prismatic Cell |
| Max Current: | 250 Amps |
| Cable Management: | IGUS Track |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Inquire for extended performance |
