ADAPTABLE - 16 CHANNELS- 100 AMPS - OPPOSING TABS
AES' patent-pending ATPHEAVY ADAPTABLE is a battery test fixture designed to accommodate battery testing up to 100 amps. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. This ATPHEAVY ADAPTABLE fixture comes standard with the ability to handle up to 16 high amperage batteries.

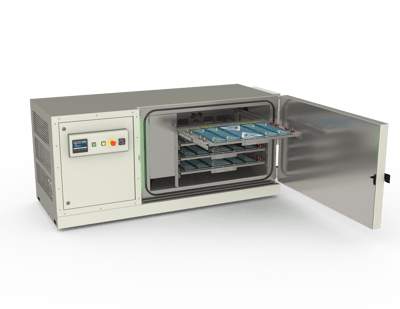

ATPHEAVY is configured to provide safe and easy placement of multiple, high amperage batteries into an environmental test chamber with four fully extending shelves. The ATPHEAVY ADAPTABLE combines multiple components critical for battery testing into a scalable, safe, high-density battery testing platform. This fixture comes with sliding shelves and can be adjusted to accommodate different setups and battery formats.
- Temperature Range: -20°C to 80°C (-4°F to +176°F)
Standard Maximum Current: up to 100 amps, continuous at ambient. Please inquire for higher amperage applications.
Specifications
| Configuration: | 4 Channel per shelf 1-4 Shelves |
| Channels: | 8-16 Channels |
| Connection Type: | Adaptable Terminals |
| Application: | Pouch Cell, Cylindrical Cell, Prismatic Cell |
| Max Current: | 100 Amps |
| Cable Management: | IGUS Track |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Inquire for extended performance |
