Prismatic And Pouch Cell - 64 Channels - 20 Amp

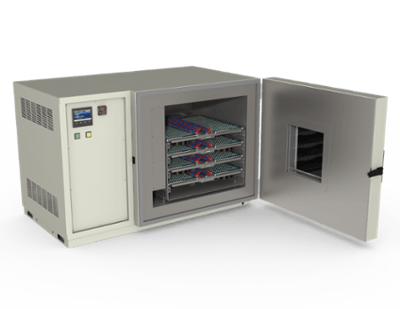

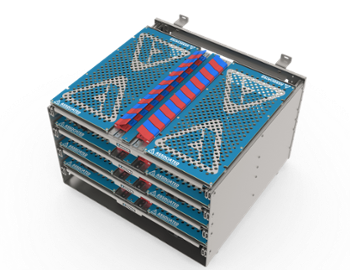

AES' patented ATPPRIME is a battery test system designed to hold up to 64 channels over four full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. IGUS track ensures wiring stays in place when shelves are moved and batteries are switched out.
Prismatic cells connect via two separate spring-loaded clips. Gold contacts at connection points ensure you get the best charge and discharge of each cell and Kelvin sensing, or four-terminal wire sensing, offer accurate readings for each channel. A two-foot patch cord connects to your battery cyclers interconnect cables for an easy connection.
Standard range: -20°C to +80°C (-4°F to +176°F)
Optional extended range -40°C to +150°C (-40°F to +302°F)
Standard Maximum Current: up to 20 amps, continuous at ambient.
Please inquire for higher amperage applications.
Specifications
| Configuration: | 16 Channels per shelf - 1-4 Shelves |
| Channels: | 16-64 Channels |
| Connection Type: | Cell Clip |
| Application: | Prismatic Cell, Pouch Cell |
| Max Current: | 20 Amps |
| Cable Management: | IGUS Track |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Optional Extended Temperature Range -40°C to +150°C (-40°F to +302°F) |
