Pack Cell - 48 Channel - 20 Amp

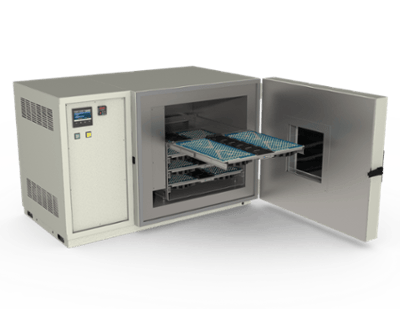

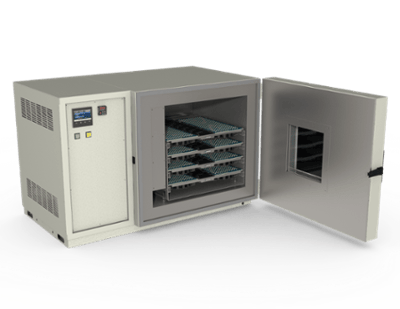

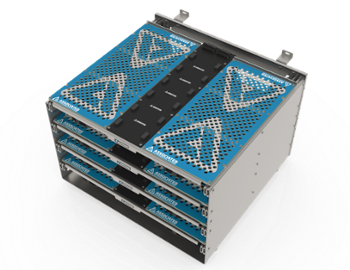

AES' patented ATPPRIME is a battery test system designed to hold up to 48 channels over four full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. IGUS track ensures wiring stays in place when shelves are moved and batteries are switched out.

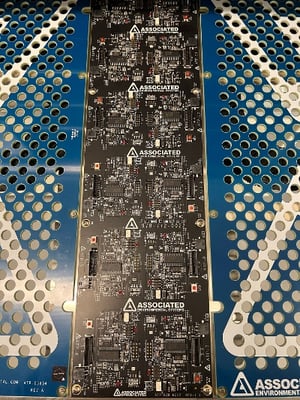

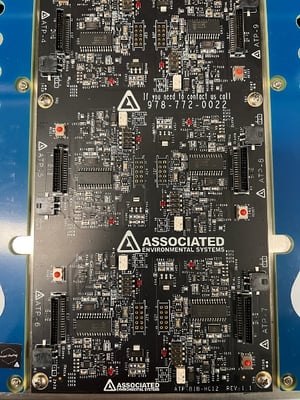

Pack cells connect to a universal adaptor using a 32-pin connector. The battery interface board includes Maccor's proprietary RS-422 circuit technology which converts data to these common communication methods: System Management Bis (SMB), Inter-Integrated Circuit (I³C), High-Speed Data Queue (HDQ).
- Pack Capability:
SD (Serial Data, aka SDA) YT (Power) DG (Digitial Ground) SC (Serial Clock, aka SCL) Force (F+ & F-) and Sense (S+ & S-)
An integrated auxiliary circuit for each channel is included. Adding a connector to the universal 2-pin molex allows you to enable secondary voltage reading that is customizable power exchanges and a variety of other signals.
- Temperature Range: -20°C to 80°C (-4°F to +176°F)
Humidity option available: 10% to 85% RH
Standard Maximum Current: up to 20 amps, continuous at ambient. Please inquire for higher amperage applications.
Specifications
| Configuration: | 12 Channels per shelf - 1-4 Shelves |
| Channels: | 12-48 Channels |
| Connection Type: | Harting Connector |
| Application: | Pack Cell |
| Max Current: | 20 Amps |
| Cable Management: | IGUS Track |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Humidity: 10% to 85% RH |
