Coin Cell - 192 Channels- 1 Amp Per Channel

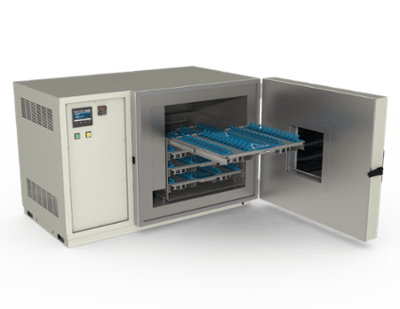

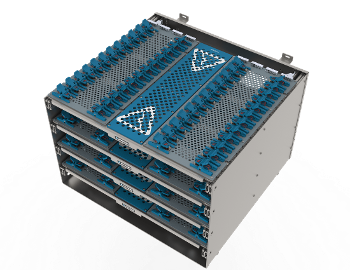

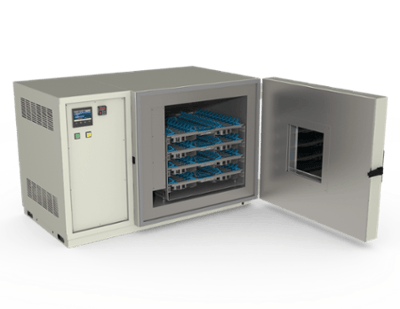

AES' patented ATPPRIME is a battery test system designed to hold up to 192 channels over four full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. IGUS track ensures wiring stays in place when shelves are moved and batteries are switched out.
Gold contacts at connection points ensure you get each cell's best charge and discharge. Kelvin sensing offers accurate readings for each channel. A two-foot patch cord connects to your battery cyclers interconnect cables for an easy connection.
Temperature Ranges:
- Standard range: -20°C to +80°C (-4°F to +176°F)
- Standard Maximum Current: 1 amp per channel , continuous at ambient. Please inquire for higher ampere applications.
Contact us for quote
Specifications
| Configuration: | 48 Channels per shelf - 1-4 Shelves |
| Channels: | 48-192 Channels |
| Connection Type: | Harting Connector |
| Application: | Coin Cell |
| Max Current: | 1 Amps |
| Cable Management: | IGUS Track |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Inquire for extended performance |
