QUANTUM-WR-5246-40
FloorWalk-In

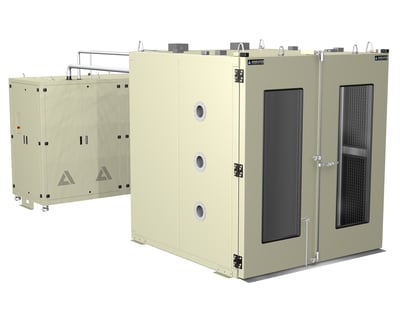

QUANTUM WR-5246-40 is a high-performance, walk-in room engineered for modern server and data center hardware validation. Designed with direct industry input, it delivers advanced airflow control, high-capacity thermal performance, and a floorless roll-in design to support full-scale server rack testing under real-world conditions.
Standout Features:
- Up to 250 kW live load testing capability for high-density server and AI hardware validation
- Front-to-back airflow architecture with adjustable static pressure control for accurate data center simulation
- Floorless roll-in design with low-profile heated ramp for seamless integration of full server racks
- Optimized pass-through architecture supports water cooling systems, networking, and power cabling for complex server setups
- Specifications
- Standard Features
- Instrumentation
- Optional Features
- Applications
- Downloads
Specifications
| Interior: | 74W x 60D x 99H (in) |
| 1879.6W x 1524D x 2514.6H (mm) | |
| Exterior: | 102W x 113D x 110H (in) |
| 2590.8W x 2870.2D x 2794H (mm) | |
| Volume: | 254.38 cubic ft |
| 7203.22 liters | |
| Temperature: | -40°C to 100°C (-40°F to 212°F) |
| Temperature Stability: | ±0.5°C (±1.0°F) at sensor after stabilization |
| Rise Rate*: | 5°C/min |
| Pull Down Rate*: | 8°C/min |
| Electrical Supply: | 480 VAC, 3 PH, 60 HZ |
| Facility Power Receptacle: |
Hardwired
|
| Full Load Amps: | 75 A |
| Thermal Heat Rejection (ThoR): | -MAX: 840 MBH -MIN: 400 MBH |
| Nationally Recognized Test Lab: | UL-508A |
| Refrigeration System: | Single stage |
| Refrigerant: |
R-404a (Optional) R-449a |
| Approximate Product Weight: | 10800 lbs (4898 kg) without added options |
*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.
*Ideal ambient temperature conditions for test chambers is 23°C (73.4°F). The temperature and humidity range of assured performance is between 15°C and 25°C (59°F/77°F) and 30-50% relative humidity. Conditions outside this range may affect the performance of your test chamber and reduce the lifespan of the equipment.
Notice for Customers Requesting R449A:
Consult our sales team regarding the use of R449A refrigerant (where applicable). This substitution ensures compliance with relevant regulations. Please be aware that the use of R449A will change the achievable low temperature to -35°C. Our sales team can provide detailed information regarding this change for your specific application.
Standard Features
STANDARD FEATURES
Instrumentation
INSTRUMENTATION
AESONE CONNECT®
IncludedMost remote monitoring platforms are sold separately. AESONE CONNECT® comes built into every walk in room series chamber, giving your team full visibility and control from the moment your chamber is online.
Remote monitoring
Live data graphs from any browser
Remote operation
Start, stop, and adjust on the fly
Multi-year data logging
On-board logging with export
Profile management
Web-based creation and scheduling
Secure access
Multi-level permissions for your team
API integration
JSON API for custom workflows
ADDITIONAL ONBOARD INSTRUMENTATION
WATLOW F4T PROGRAMMABLE CONTROLLER. Features a 4.3” capacitive touchscreen minimizing the chance for error. Ethernet communication supported by AESONE CONNECT®. View more controller options
SENSORS.
- TEMPERATURE SENSOR. Measured at the point of airflow entering the workspace. Class A, 3-wire, 100 Ohm Platinum RTD sensor
- RELATIVE HUMIDITY SENSOR. Measured at the point of airflow entering the workspace. Speed of airflow does not affect measurement. Sensor is highly accurate between 10-95% RH, over the entire temperature operating range of -70°C to +180°C (-94°F to +356°F)
- Solid-State Humidity Sensor
- View sensor options
OPTIONAL DATA LOGGERS. View additional data loggers
Optional Features
- LN2 Boost Cool
- CO2 Boost Cool
- Adjustable Safety with Alarm
- Honeywell Chart Recorder
- Honeywell Digital Chart Recorder
- Change Port Size/Access Point
- Desiccant Air Dryer to ensure conditions as low as 5% RH
- Dry Nitrogen Purge to keep condensation and frost from accumulating on DUT surfaces at cold temperatures and to prevent oxidation of metals surfaces at high temperatures
- Dehumidifier
- Water-Cooled Condenser
- Noise Reduction Package
- Alternative Power Requirements
Applications
APPLICATIONS & USE CASES
The WR Walk-In Series is highly customizable, depending on the product you are testing. Engineered as large-scale environmental rooms for full-size assemblies, server racks, satellites, and production-scale payloads, the WR Series is offered as both stability walk-ins (steady-state, long-duration conditioning) and performance walk-ins (iterative thermal cycling). Dimensions, door configurations, live-load capacity, floor loading, temperature and humidity ranges, ramp rates, pass-through ports, and controls are all tailored to the application.
HIGHLIGHTED INDUSTRIES
Learn more about the industries we serve here.
- High-Performance Computing
- Aerospace & Aviation
- Pharmaceuticals
- Medical Devices
- Energy Grid Storage
- Consumer Products
- Packaging
- Military & Defense
USE CASES
- Testing, Inspection & Certification (TIC) Walk-In Application: Fully customized walk-in chamber built for a TIC customer to certify production-scale payloads with 30 kW live load capacity, 600 lbs/sqft aluminum floor (3,000 lb static), 5" Insulframe stainless steel panels, and a 9' H × 8' W double-swing bi-part door. Commissioned in phases with a remote machine pack for modular installation. Read more
- Aerospace Satellite Environmental Simulation Application: A global e-commerce and technology company deployed six identical 2,688 cu ft WR walk-ins to replicate launch and on-orbit conditions for its satellite fleet. Read more
- High Performance Computing (HPC) High Live Load Application: The QUANTUM WR-5246-40 is engineered for up to 250 kW live-load AI/HPC server rack and GPU testing. Features include a floorless design that accepts two full server racks directly from the data center floor, optimized airflow and static-pressure management for realistic thermal loading, large viewing windows for DUT observation, and AESONE CONNECT® remote monitoring for long-duration data center simulation runs. Read more
