What Is a Battery Test Chamber?

Battery test chambers simulate the most intense real-world conditions your cells are likely to encounter, including extreme temperature fluctuations, humidity levels, and cycling processes. These chambers enable precise testing of battery performance, safety, and reliability by allowing controlled charging and discharging cycles in a controlled environment.

Why Battery Testing Matters

Lithium-ion batteries now power everything from consumer electronics to EVs to critical medical devices — and that expanding role raises the stakes on getting testing right. Lithium's energy density and rechargeability make it the material of choice across industries, but that same energy density carries real risk: thermal runaway, the failure mode behind headline-making battery fires and recalls, can turn a design flaw into a safety and reputational crisis fast.

That's why environmental and safety testing isn't optional — it's how manufacturers catch failure points before a battery ever reaches the field. A properly designed battery test chamber replicates the temperature extremes, cycling stress, and environmental exposure a battery will face in the real world, so you can validate performance and safety long before production scale.

Find the Battery Chamber That’s Right for You

AES fills a key industry gap by providing patented integration of chambers and battery testing equipment, giving customers a single-source solution. This approach streamlines operations, saving both time and money.

Our extensive experience also ensures a smooth installation that minimizes delays and costly mistakes. Backed by hundreds of thousands of active battery test channels, we’ve built a proven track record in the field.

Choose AES for chambers and fixtures that deliver convenience, reliability, and long-term productivity.

Choose Your Battery Test Chamber

The Original Battery Test Chamber, Engineered by AES

AES is the original manufacturer of battery test chambers, setting the standard for safe, reliable, and precise testing environments. Our lineup supports every stage of development:

  • R&D to production – chambers sized for any cell count or energy capacity
  • Flexible testing – from charge/discharge cycles to abuse testing
  • Proven design – optimized airflow, tight environmental control, and built-in safety

Test with confidence knowing every AES chamber is purpose-built for battery innovation.

SD-501-3RS

Sd-501 size



Compact, triple-stack solution with three 1-cu-ft chambers.

  • Space-saving vertical design
  • Ideal for small-batch testing
  • Maintains performance without taking up lab floor space

SD-508-SAFE

SD-508-stacked

Versatile 8-cu-ft chamber built for flexibility and safety.

  • Stackable or stand-mounted for lab efficiency
  • Optional humidity control for precise conditions
  • Perfect for labs needing extra capacity without losing space

SC/SCH SAFE Series

SC-512 SAFE Double Stack

 SC/SCH Series available in 8 or 12 cu ft

  • High-capacity “Super Charged” performance
  • Optimized airflow for advanced testing
  • Available with humidity control
  • Full range of integrated safety features

FD Safe Series

HD-536 No window

Large-format chambers in 27 or 48 cu ft.

  • Built for extreme testing conditions
  • Handles large cells and demanding applications
  • Combines space, safety, and durability for long-term reliability

LARGE SCALE BATTERY TESTING

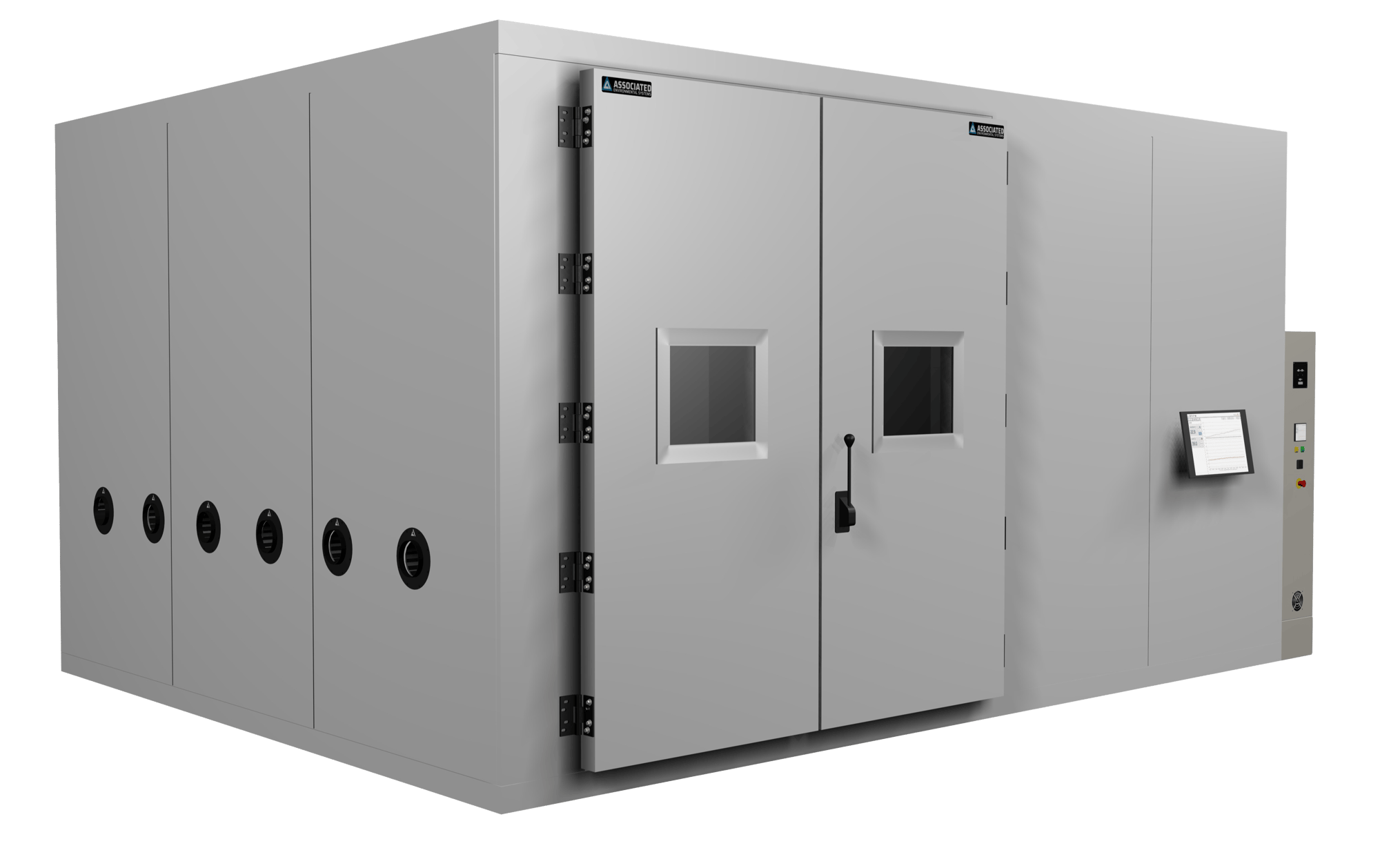

Walk-IN BATTERY TEST CHAMBERS

When testing goes beyond standard chamber sizes, AES provides fully customized walk-in chambers built for large-scale batteries like EV packs, modules, and other high-capacity formats.

Key advantages include:

  • Flexible configurations tailored to your specifications
  • Advanced safety systems for high-energy testing
  • Cycler integration to support efficient, data-driven results

With AES walk-in solutions, you can test efficiently, safely, and at scale.

Building a Battery Testing Lab or Planning an Expansion?

AES helps companies build environments that work today and adapt for tomorrow.

We provide guidance on:

  • Power and installation – ensure the lab has the right electrical capacity and infrastructure
  • Layout and spacing – optimize chamber placement for performance and safe employee movement
  • HVAC and safety systems – maintain stable conditions and meet safety standards
  • Training and planning – prepare teams for safe operation and allow room for future growth
TALK TO A BATTERY TESTING SPECIALIST

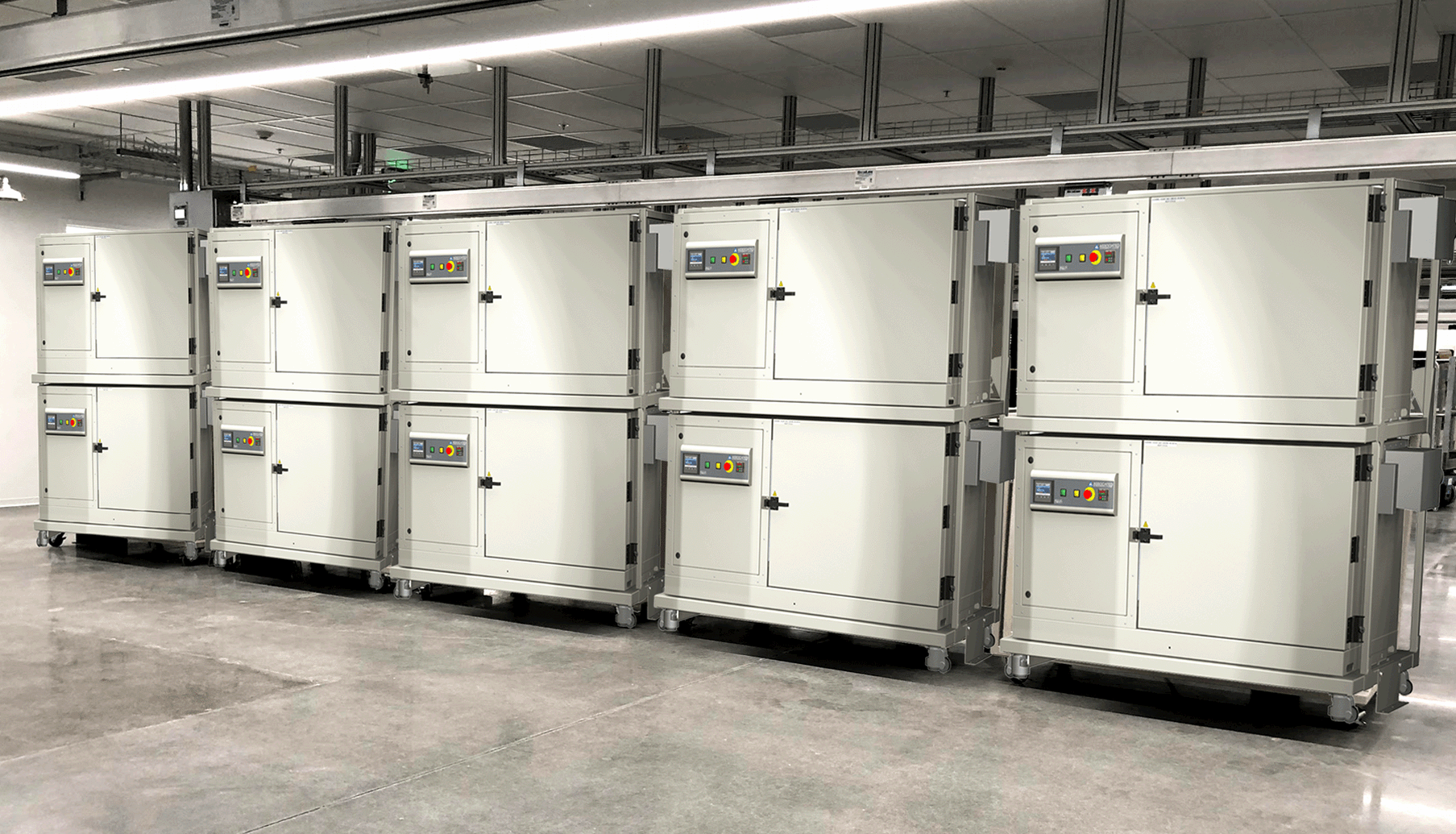

6 battery testing chambers in a battery testing lab



Battery Test Safety Chamber - EUCAR Hazard Levels

DOWNLOAD SAFETY GUIDE

Standard AES Chambers
AES SAFE Required
Severity Level Description Severity Classification & Effects Criteria
0 No Effect No effect. No loss of functionality.
1 Reversible Loss of Function No defect; no leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell reversibly damaged. Repair of protection device needed.
2 Irreversible Defect/Damage No leakage; no venting, fire, or flame; no rupture; no explosion; no exothermic reaction or thermal runaway. Cell irreversibly damaged. Repair needed.
3 Leakage
Δ mass <50%		 No venting, fire, or flame; no rupture; no explosion. Weight loss <50% of electrolyte weight (electrolyte = solvent + salt).
4 Venting
Δ mass >=50%		 No fire or flame; no rupture; no explosion. Weight loss ≥50% of electrolyte weight (electrolyte = solvent + salt).
5 Fire or Flame No rupture; no explosion (i.e., no flying parts).
6 Rupture No explosion, but flying parts of the active mass.
7 Explosion Explosion (i.e., disintegration of the cell)

*Gas Sensors and Additional Safety Features Available

RELATED PRODUCTS

ATP/Cycler Interface Panel

Our cycler interface panel, situated at the rear of the chamber, offers a secure location for connections and ensures safety and functionality for direct communication about the health of your cell.

RELATED PRODUCTS

Patented Battery Testing Solutions

As the original battery testing fixture manufacturer, AES has set the standard for innovation, safety, and reliability in battery testing. Engineered and built in the USA, our fixtures are designed to grow with your testing needs and stand the test of time.

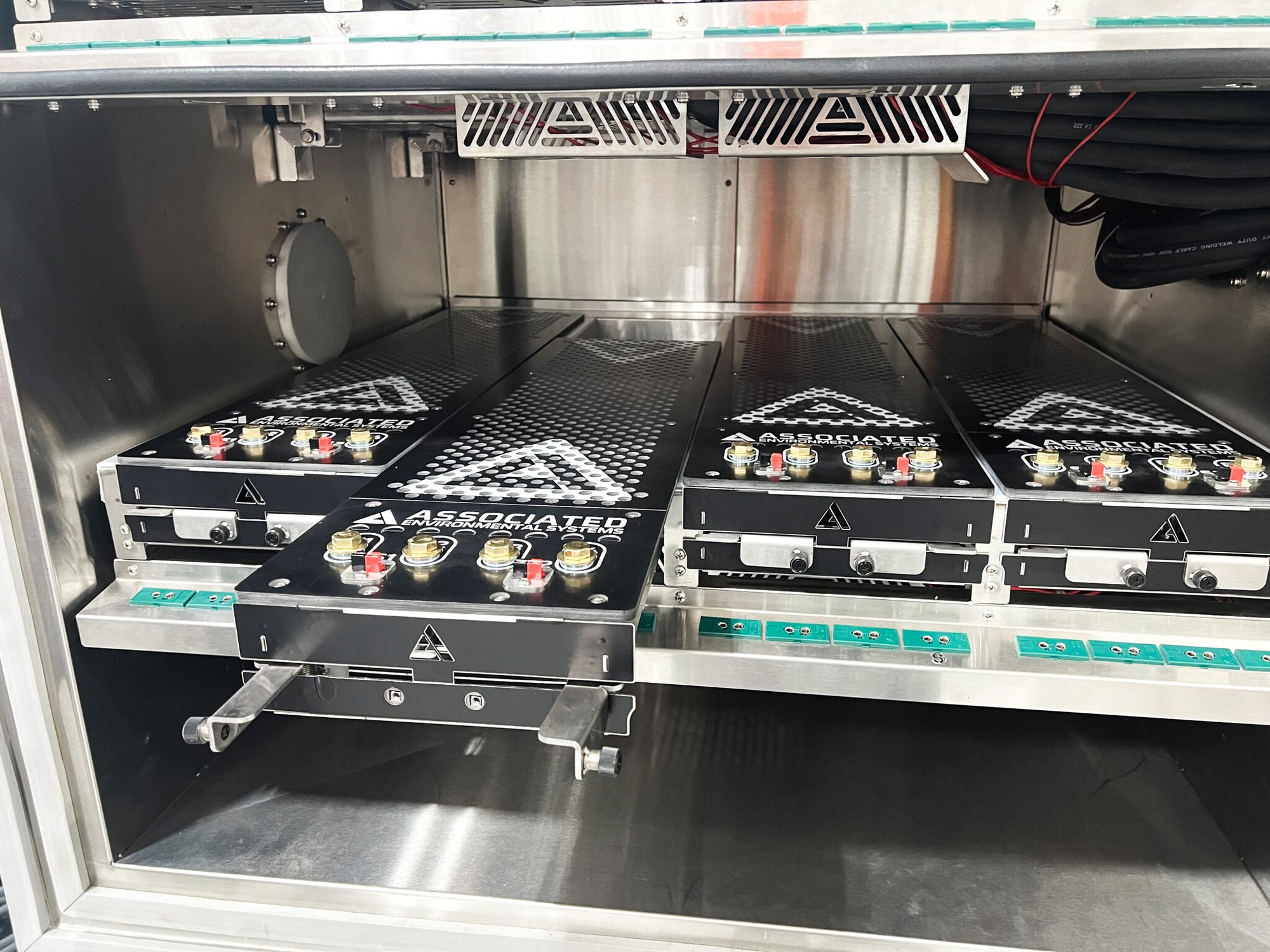

ATPFLEX

AES-pillar-slider-images-atp-flex-12x6



ATPPRIME

AES-pillar-slider-images-prime-cylindrical



ATPHEAVY

Vertical Pouch ATPHEAVY



Powering Progress, One Project at a Time

Behind every AES battery test chamber is a story of innovation, precision, and reliability. Our product spotlights highlight real-world applications where our chambers help push battery technology forward—whether it’s enhancing safety, increasing capacity, or supporting groundbreaking research.

See how AES partners with industry leaders to solve complex testing challenges and deliver dependable results.

AES_MegaMenu_Icons24

5000+

Active Battery Test Chambers

AES_MegaMenu_Icons2

200,000+

Active channels deployed in our ATP® systems

AES_MegaMenu_Icons21

up to 1200 Amps

Our ATP® solutions can accommodate less than 1 amp up to 1200 amps continuous or pulse

PREVENT AND MITIGATE BATTERY EVENTS WITH AES SAFE

SAFE SYSTEM - WHY SAFETY ISN'T OPTIONAL

AES’s SAFE System is engineered specifically for battery testing, not adapted from general chambers. It prevents hazardous events before they occur and provides robust safeguards when they do.

Key prevention features:

  • Temperature-limited sheath heaters – keep heating elements below auto-ignition thresholds
  • Cell-mounted safety thermocouples – monitor abnormal temperature rise in real time
  • Customizable high-temp shutoffs – automatic alerts and proactive chamber shutdown
    Setpoint controls & rapid rise detection – block unsafe test profiles and trigger early intervention

Built-in mitigation tools:

  • Atmospheric inertization – suppresses fire with inert gases
  • Low-flow pressure relief vent – safely exhausts cell gases
  • Graphite burst disk – emergency pressure relief for worst-case events

Optional abuse testing configuration:

Expands temperature capabilities for extreme test profiles while maintaining SAFE protection.

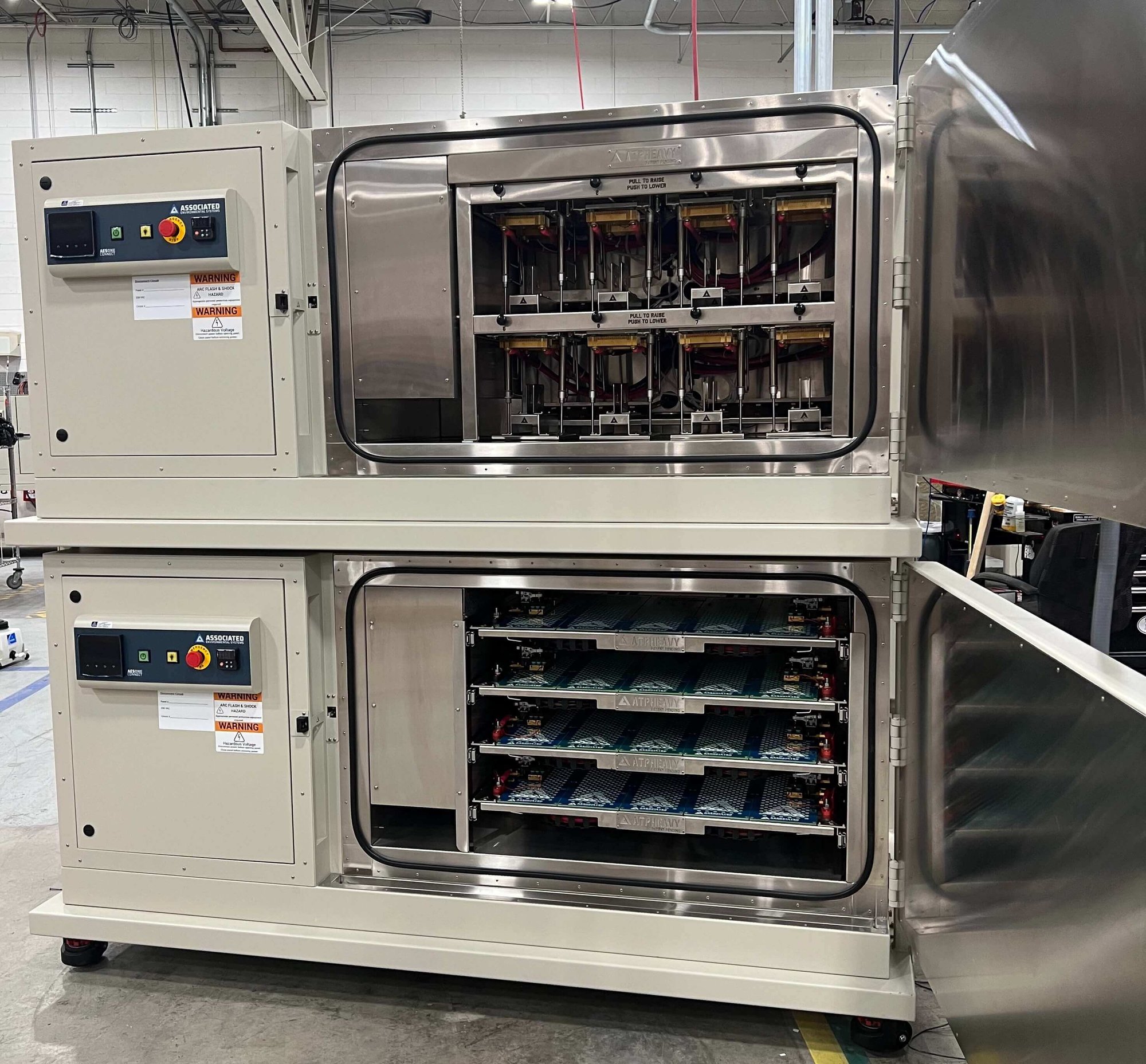

IMG_7295-1-1

Frequently Asked Questions

Have Question? We are here to help

What is the purpose of battery testing?

The purpose of battery testing is to measure performance, safety, and reliability under controlled conditions. Testing shows how batteries respond to stress factors like temperature swings, cycling, and environmental exposure.

What is the function of a battery temperature chamber?

A battery test chamber creates a controlled environment to replicate real-world conditions. It precisely manages temperature, humidity, and airflow so batteries can be safely tested for durability and compliance.

What types of batteries can you test in a battery thermal chamber?

Battery test chambers can test nearly all formats, including cylindrical, prismatic, pouch, coin cells, and full battery packs. This flexibility supports R&D through production-scale testing across many industries.

How does a battery test chamber ensure safety during testing?

A battery test chamber ensures safety by using systems that prevent and contain hazards during operation. Features include over-temperature protection, venting, fire suppression, and real-time monitoring of battery conditions.

What temperature range do battery test chambers cover?

Environmental chambers for battery testing typically cover a wide range of temperatures, from –70°C to +180°C. This range lets you simulate extreme environments, ensuring batteries can operate safely in diverse real-world applications.

Are battery test chambers used for electric vehicle (EV) battery testing?

Yes, battery test chambers are commonly used for EV battery testing. They handle large-format cells and packs, enabling manufacturers to validate performance, safety, and lifecycle under automotive conditions. They also cover a wide range of industry applications like consumer electronics, energy storage, battery powered medical devices and more.
