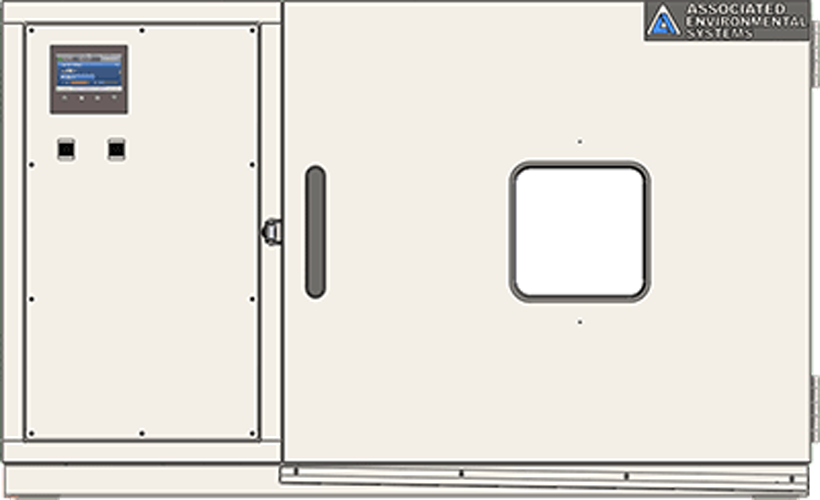

The SD-505 is a benchtop-style environmental test chamber for temperature-only testing. The chamber is designed to fit on your lab table and still have easy and safe access when you reach-in the workspace.

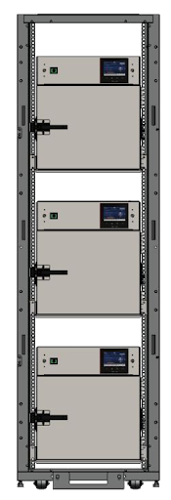

If you are concerned about losing your lab counter space, this test chamber has an optional floor stand for one chamber or get double the test workspace when you stack two SD Test Chambers in the same footprint.
STRUCTURE. The internal workspace is lined with type 304 stainless steel for a vapor-tight internal construction. The exterior has a durable powder-coat finish over heavy-gauge steel for a long-lasting clean look. Between the two layers is highly-efficient, low k-factor, thermal insulation. This chamber is built to last for many years.
CIRCULATION SYSTEM. Air circulation is crucial for environmental testing. The SD-505 Test Chamber has a proprietary baffle and fan design combination. This optimizes temperature conditions within the workspace.
HEATING SYSTEM. SD test chambers feature heating systems equipped with open ceramic-core nichrome heaters for reliable and accurate temperature control within ±0.5°C.
COOLING SYSTEM. The cooling system in the SD-505 consists of a self-contained mechanical refrigeration system with a single stage configuration, and an air-cooling condenser. An optional water cooling-condenser is available.
Add boost cooling with liquid LN2 or CO2 for even faster pull-down rates. It's a great option for stress tests that require rapid cooling.
Even without boost cooling, AES’ standard cascade refrigeration systems have the fastest standard change rates of any environmental test chamber manufacturer. See Basic Specifications tab below.
INSTRUMENTATION. SD-505 Test Chamber incorporates AESONE CONNECT creating a robust connected device giving you a standard and uniform interface that makes operation easier. Learn more in the Instrumentation Tab below.
ALTERNATIVE TEMPERATURE RANGES:
|Interior:||20.0W x 22.0D x 20.0H (in)|
|508W x 558.8D x 508H (mm)|
|Exterior:||50.0W x 35.0D x 31.0H (in)|
|1270W x 889D x 787.4H (mm)|
|Volume:||5.09 cubic ft|
|Temperature:||-37°C to 180°C (-34.6°F to 356°F)|
|Pull Down Rate*:||1.24°C/min|
|Electrical Supply:||208 VAC, 1 PH, 50HZ or 60HZ|
|Full Load Amps:||22 A|
|Power Requirement:||NEMA L6-30|
|Refrigeration System:||Single stage|
|Mobility:||Will fit through 48 in doorway|
|Approximate Product Weight:||520.0 lbs (236 kg) without added options|
|Approximate Shipping Weight:||630.0 lbs (286 kg) without added options|
*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.
SD Series Test Chambers have incorporated AESONE CONNECT creating a robust connected device for a standard and uniform interface making test chamber operation easier.
AESONE XCHANGE is hardware internal to the chamber that increases your functionality
AESONE SOFTWARE gives you the power to
WATLOW F4T PROGRAMMABLE CONTROLLER. Features a 4.3” capacitive touchscreen minimizing the chance for error. Ethernet communication supported by AESONE HARDWARE. View more controller options
OPTIONAL DATA LOGGERS. View additional data loggers
